Counterbalance Electric Pallet Stacker DC Drive Control Walkie Type

ANHUI JIARUO IMPORT AND EXPORT CO.,LTD
Contact Now

Counterbalance Electric Pallet Stacker DC Drive Control Walkie Type

Brand Name : EFORK

Model Number : CDD09BW/CDD10BW

Certification : CE/CAS

Place of Origin : China

MOQ : 1

Price : us dollar 3500-8000 USD

Payment Terms : T/T, L/C

Delivery Time : 15

Power : electric

Operation manner : walkie

Rated capacity : 900kg/1000kg

Wheel type : Polyurethane

Lifting height : 1600-4500mm

Weight including battery : 1290kg

Battery type : Lead-Acid/Lithum acid

Drive control mode : DC

Contact Now

Electric Counterbalance Pallet Stacker Pallet Lifter Walkie Type

Product discription

counterbalance electric pallet stacker

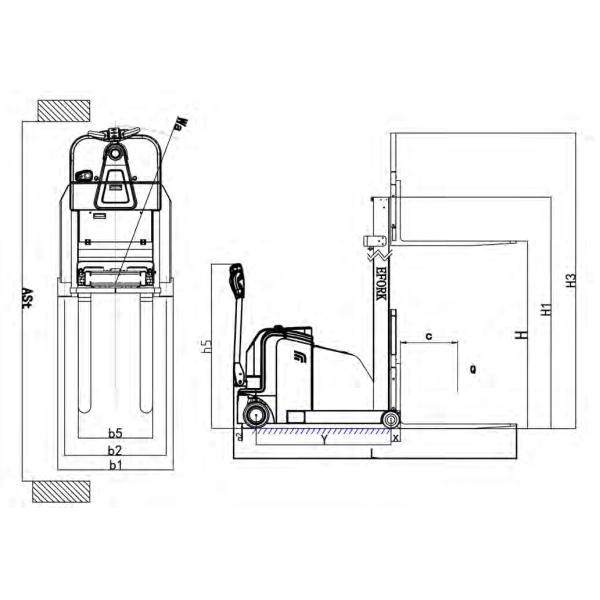

1.1 model number CDD09BW CDD10BW
1.2 power electric electric
1.3 operation type walkie type walkie type
1.4 rated capacity Q(Kg) 900 1000
1.5 load center C(mm) 500 500
1.6 front overhang X(mm) 76 76
1.7 wheelbase Y(mm) 1070 1240
2.1 overall weight with battery kg 1290 1320
3.1 wheel type front/rear PU PU
3.2 front wheel ∅×w(mm) Φ140x100 Φ140x100
3.3 rear wheel ∅×w(mm) Φ210x70 Φ210x70
3.4 wheeltread,front wheel b2(mm) 805 805
4.1 lowered mast height H1(mm) 2080 2080
4.2 lifting height H(mm) 3000 3000
4.3 max.mast height H2(mm) 3913 3913
4.4 loweredfork height H3(mm) 35 35
4.5 overal length(without fork) L(mm) 2245 2245
4.6 width b1(mm) 916 916
4.7 fork dimension s/e/l(mm) 920*100*35 920*100*35
4.8 fork adjustment b5(mm) 200-590 200-590
4.9 min.ground clearance m2(mm) 40 40
4.10 aisle width,pallet1000×1200 Ast(mm) 2720 2890
4.11 min.turning radius Wa(mm) 1257 1428
5.1 travel spped,unload/load km/h 4.0/3.5 4.0/3.5
5.2 lifting speed,unload/load m/s 0.215/0.145 0.215/0.130
5.3 lowering speed,unload/load m/s 0.105/0.125 0.105/0.130
5.4 max. gradeability,unload/load 5.0/4.5 5.0/4.0
5.5 brake electromagnetic electromagnetic
6.1 driving motor power kw 0.75 0.75
6.2 lifting motor power kw 2.2 2.2
6.3 battery type lead acid Lithum acid
6.4 battery voltage/capacitance V/Ah 24/100 24/40
6.5 charger v/A 24V/10A 24V/20A
7.1 drive control mode DC DC

Counterbalance Electric Pallet Stacker DC Drive Control Walkie Type

Counterbalance Electric Pallet Stacker DC Drive Control Walkie Type

1. Compared with similar products in the market, we have smaller turning radius and channels, larger load center
distance (500mm), and better performance.
2. Curtis controller, imported waterproof and dustproof plug-in. More reliableprotection is provided for the circuit,
greatly reducing the electrical fault,and the 48V system can be configured at a high level.
3. Maintenance free battery (optional lithium battery), no need to add liquid,maintenance and labor-saving.
4. Built in charger. It is easy to charge and can be charged by turning over the cover.
